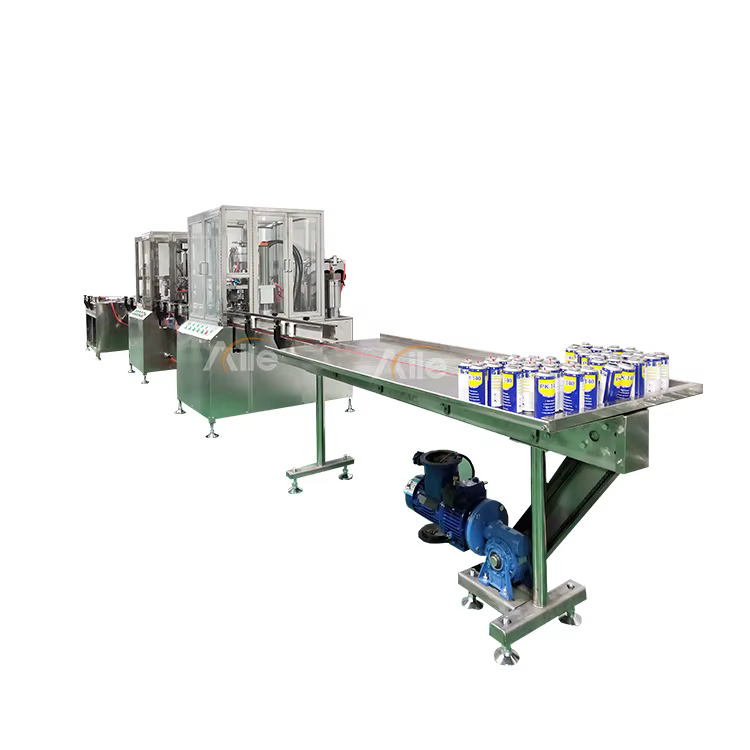

The production line has 4-5 machines (aerosol push table --- valve feeding machine --- automatic liquid filling machine ---
automatic crimping and gas filling machine --- workbench)

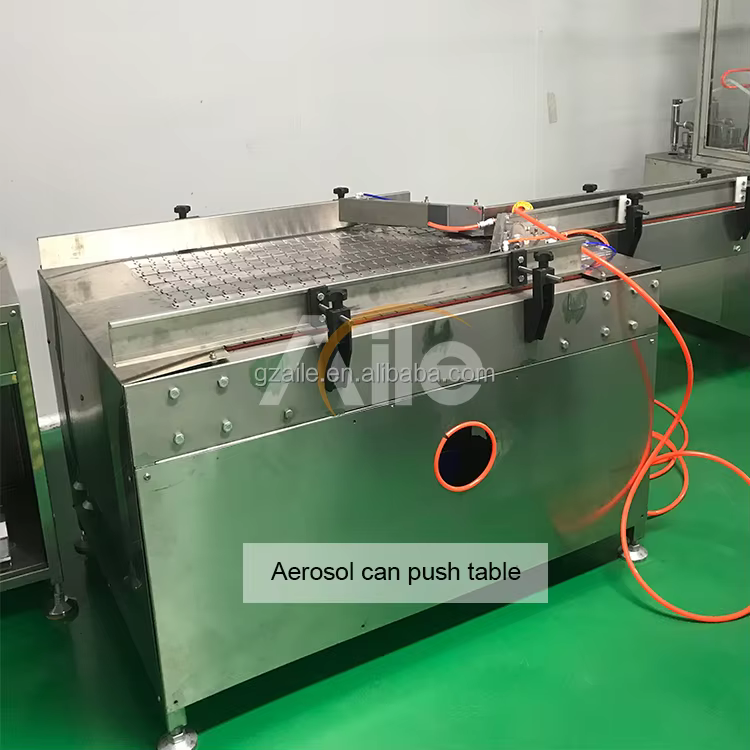

1. Aerosol can push table --- can load 200-400 cans each time

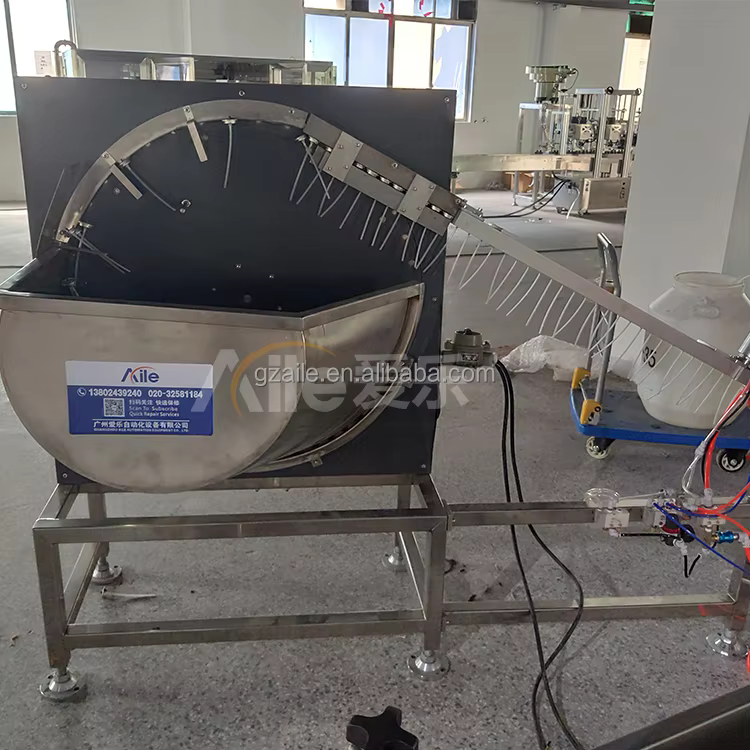

2. Valve feeding machine--- suitable for tin valve and aluminum valve

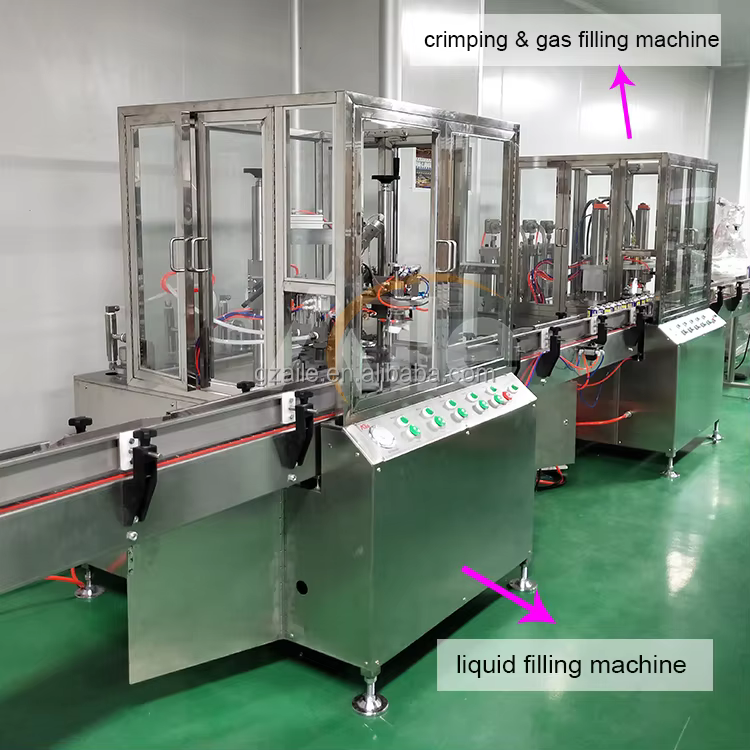

3. Filling machine ---- It is suitable for medium viscosity solution such as spray liquid, oil and emulsion solvent ;
4. Gas filling machine--- Suitable for LPG, F12, DME, N2 and other projectiles.

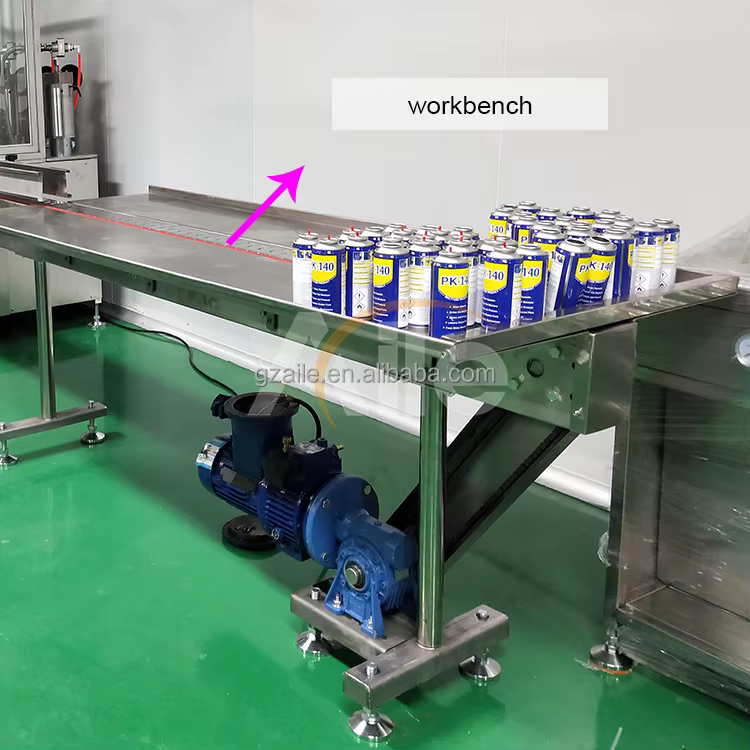

5. Workbench --- 2 meters lenght
|
Product name
|
Aerosol Filling Machine
|
|
Driven Type
|
Electric,Pneumatic
|
|
Voltage
|
380/220v; 50/60hz
|
|
Material
|
Stainless Steel
|
|
Filling speed
|
2400-3600 cans/h
|
|
Filling range
|
30-750 ml
|
|
Control
|
PLC+ Touch Screen/button
|
|
Max gas filling capacity
|
450ml
|
|
max liquid filling capacity
|
450ml
|
|
filing accuracy
|
±1%
|
|
suitable aerosol bottle
|
diameter:35-70mm/ height:80-350mm
|
|
air pressure
|
0.8-1 mpa
|
