Semi-Automatic Aerosol Filling Machine Set (3 Separate Stations) for Liquid, Crimping & Gas

Flexible Production Solution: 3 Independent Machines for Liquid Filling, Crimping & Gas Filling.
Perfect for Startups & Labs. Buy the Complete Set or Individual Units.

━━━━━━━━━━━━━━━━━━━━━━━━━━

KEY SPECIFICATIONS

● Configuration: 3 Separate Stations (Customizable)

● Production Speed: 800 - 1200 Cans/h (Per Station)

● Filling Capacity: Max 400ml (Liquid & Gas)

● Feature: Flexible Operation / Low Maintenance Cost

Brand:
AILE
Spu:
AL-QW-FT
  • Description
  • Product Introduction
  • Technical Specifications
  • Industries We Serve
  • Why Choose AILE
  • FAQ

Semi-Automatic Aerosol Filling Machine Set (3 Separate Stations) for Liquid, Crimping & Gas supplier

(Watch the machine in action)

The AILE Semi-Automatic Aerosol Filling Machine Set consists of three independent machines for liquid filling, aerosol valve crimping, and propellant filling. Unlike an integrated 3-in-1 workstation, each machine operates as a separate production station, giving manufacturers greater flexibility in workshop layout, operator arrangement, and future equipment expansion.

This split-type configuration is suitable for flexible aerosol production, multiple SKUs, phased equipment investment, and factories that already own part of the required machinery. Customers can purchase the complete three-machine set or select individual units according to their existing production setup.

The liquid filling machine is designed for compatible low-to-medium viscosity formulations, while the crimping machine seals standard 1-inch aerosol valves and the propellant filling machine can be configured for commonly used aerosol propellants such as LPG, DME, N₂, and CO₂.

Suitable Applications: body spray, air freshener, hairspray, insecticide spray, lubricant aerosol, shaving foam, and other conventional aerosol products subject to formulation and packaging compatibility.

If you prefer a more compact workstation with the three core processes integrated into one machine, compare this setup with our Semi-Automatic 3-in-1 Aerosol Filling Machine .

For other flexible production configurations, explore our Semi-Automatic Aerosol Filling Machines .

Machine Configuration

  • 01. Liquid Filling Machine – Quantitatively fills the prepared product formulation into aerosol cans.
  • 02. Aerosol Valve Crimping Machine – Crimps standard 1-inch aerosol valves to create a pressure-tight seal.
  • 03. Propellant Filling Machine – Fills LPG, DME, N₂, CO₂, and other suitable aerosol propellants according to the project configuration.
Product Name Semi-Automatic Aerosol Filling Machine Set

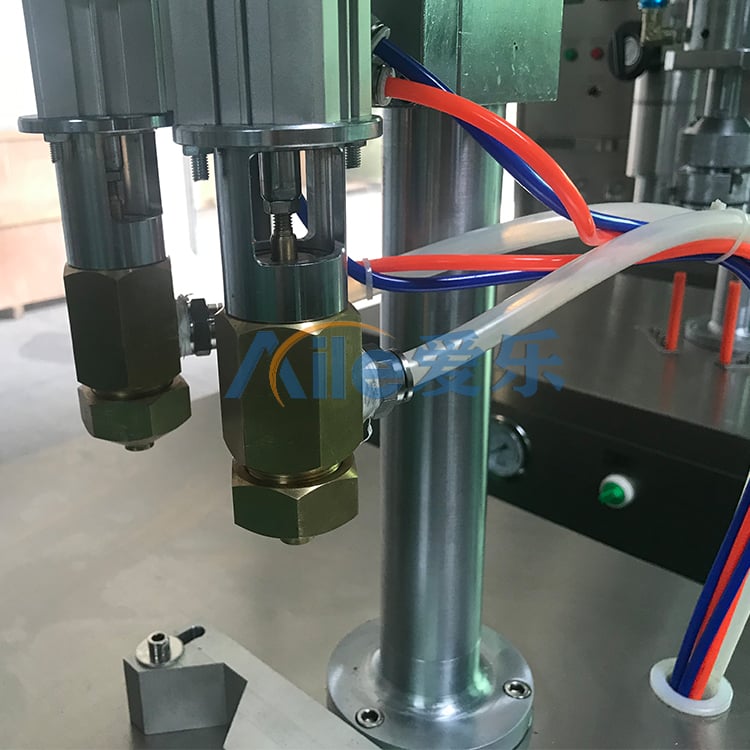

01. Semi-Automatic Liquid Filling Machine

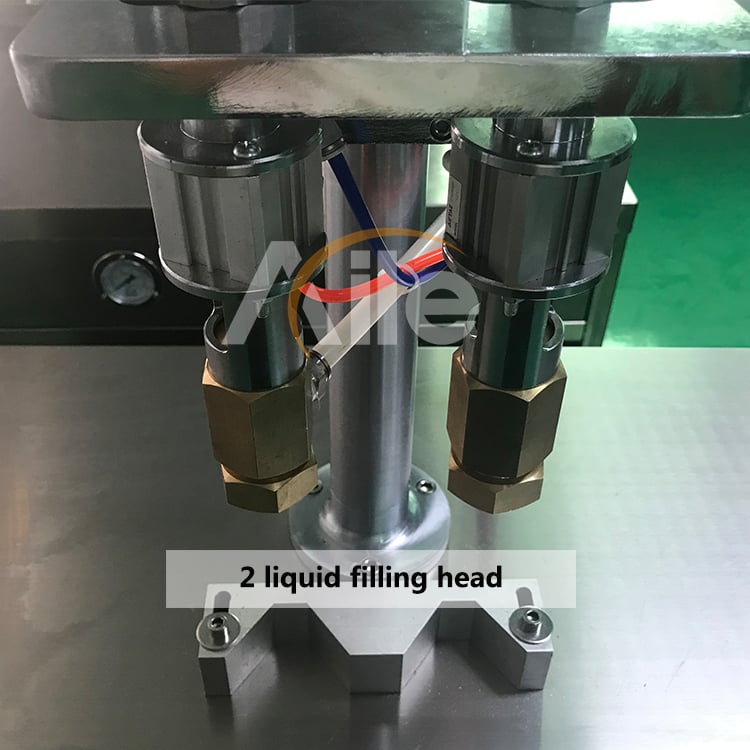

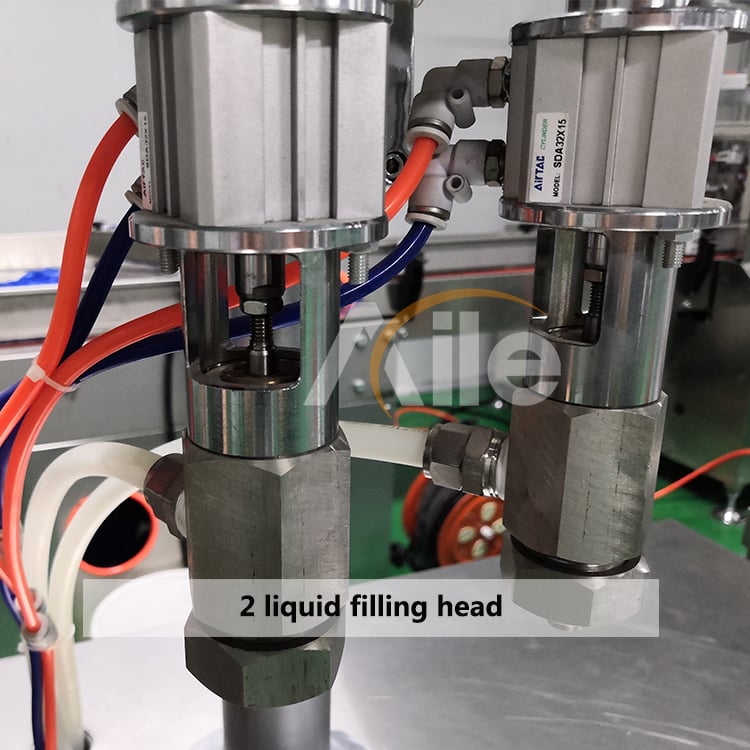

Filling Heads 2 Heads

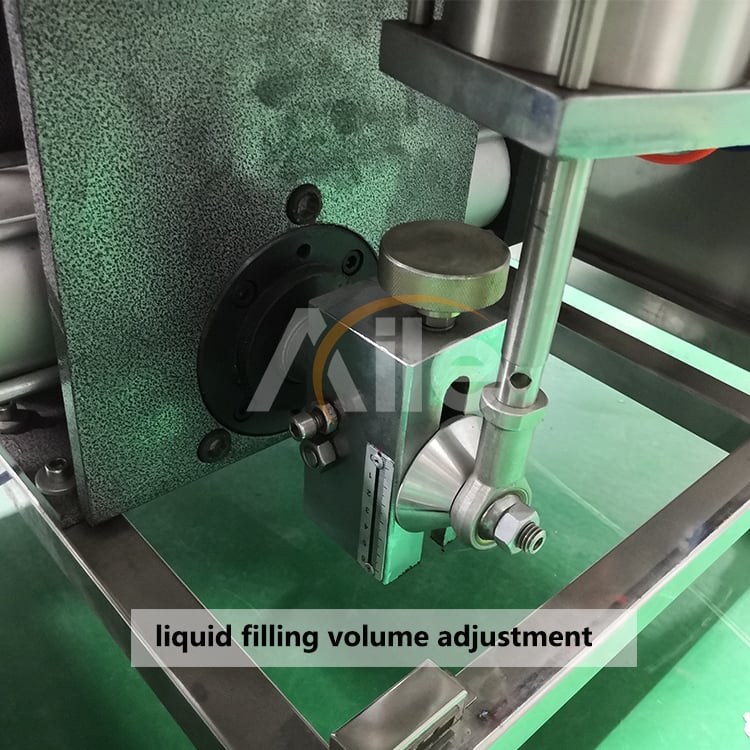

Filling Capacity Max. 400 ml (Per Head)
Filling Speed 800 - 1200 cans/h
02. Semi-Automatic Valve Crimping Machine
Crimping Heads 1 Head
Crimping Speed 700 - 900 cans/h
Crimping Dimensions Diameter: 27.0-27.3mm / Depth: 4.8-5.2mm
03. Semi-Automatic Gas Filling Machine
Gas Filling Heads 1 Head
Filling Capacity Max. 400 ml
Filling Speed 700 - 900 cans/h
General Specifications (For All Machines)
Applicable Can Size Diameter: 35-65mm / Height: 80-330mm
Working Pressure 0.5 - 0.7 MPa
Control System Pneumatic Button Control
Pneumatic Brand AirTAC
We understand the challenges faced in various industries and offer tailored aerosol filling machines to meet your specific production needs effectively.
Contact Us >
Automotive & Transportation
Automotive & Transportation
Household Products
Household Products
Industrial & Maintenance
Industrial & Maintenance
Construction & Infrastructure
Construction & Infrastructure
Pharmaceuticals & Medical
Pharmaceuticals & Medical
Fire & Safety
Fire & Safety
Personal Care & Cosmetics
Personal Care & Cosmetics
Food & Beverage
Food & Beverage

Why Choose AILE

Factory Direct Price
Skip the trading company. Save 20%-30% on your initial investment with our direct manufacturing supply.
Tailored Solution
Custom layout design and function configuration based on your specific bottle shape and material.
Lifetime Support
24/7 online technical guidance via video call. Engineers available for overseas installation.
Hassle-Free Import
Full set of CE/Ex certificates and clearance documents provided to ensure smooth customs entry.
缩写词: 国际标准组织

Frequently Asked Questions

1. Why choose three separate aerosol machines instead of an integrated 3-in-1 machine?
The split-type configuration gives manufacturers greater flexibility in workshop layout and machine operation. Each station can be positioned independently, operated by different workers if required, and upgraded or replaced separately. An integrated 3-in-1 machine is more compact, while three separate machines provide greater flexibility for production planning and future expansion.
2. Do I have to purchase all three machines together?
No. The liquid filling machine, valve crimping machine and propellant filling machine can be supplied as a complete set or purchased individually. This is useful for factories that already own part of the aerosol production equipment and only need to add a missing process.
3. Can the three machines operate at the same time?
Yes. The three stations are independent and can operate simultaneously. Actual line output depends on the slowest workstation, operator arrangement, filling volume, packaging materials and production method.
4. How many operators are required for this machine set?
Operator requirements depend on the desired output and factory workflow. Because the three machines are independent, customers can arrange one or multiple operators according to production capacity, labor availability and the required degree of manual can transfer between stations.
5. Is this setup suitable for producing different aerosol products?
Yes. The split-type setup is particularly useful for flexible and multi-SKU production. Machine settings can be adjusted according to compatible filling volumes, aerosol cans, valves and propellants. Products with unusual viscosity, particles or special formulations should be tested before the final configuration is confirmed.
6. What is the difference between this split-type set and the 3-in-1 aerosol filling machine?
Both configurations perform liquid filling, valve crimping and propellant filling. The main difference is machine layout. The split-type system uses three independent machines, while the 3-in-1 aerosol filling machine integrates all three operations into one compact workstation.
7. Can I add more filling heads or upgrade the system later?
Because the three stations are independent, the production setup can be expanded more flexibly than a fixed integrated workstation. If production demand increases, AILE can evaluate additional filling capacity or recommend a higher-automation configuration based on the required output.
8. Should I send cans, valves and product samples before ordering?
Yes. AILE recommends providing the actual aerosol cans, valves, actuators and product information before the final machine configuration. For unfamiliar or special formulations, product samples can also be used to verify filling behavior and packaging compatibility before shipment.
