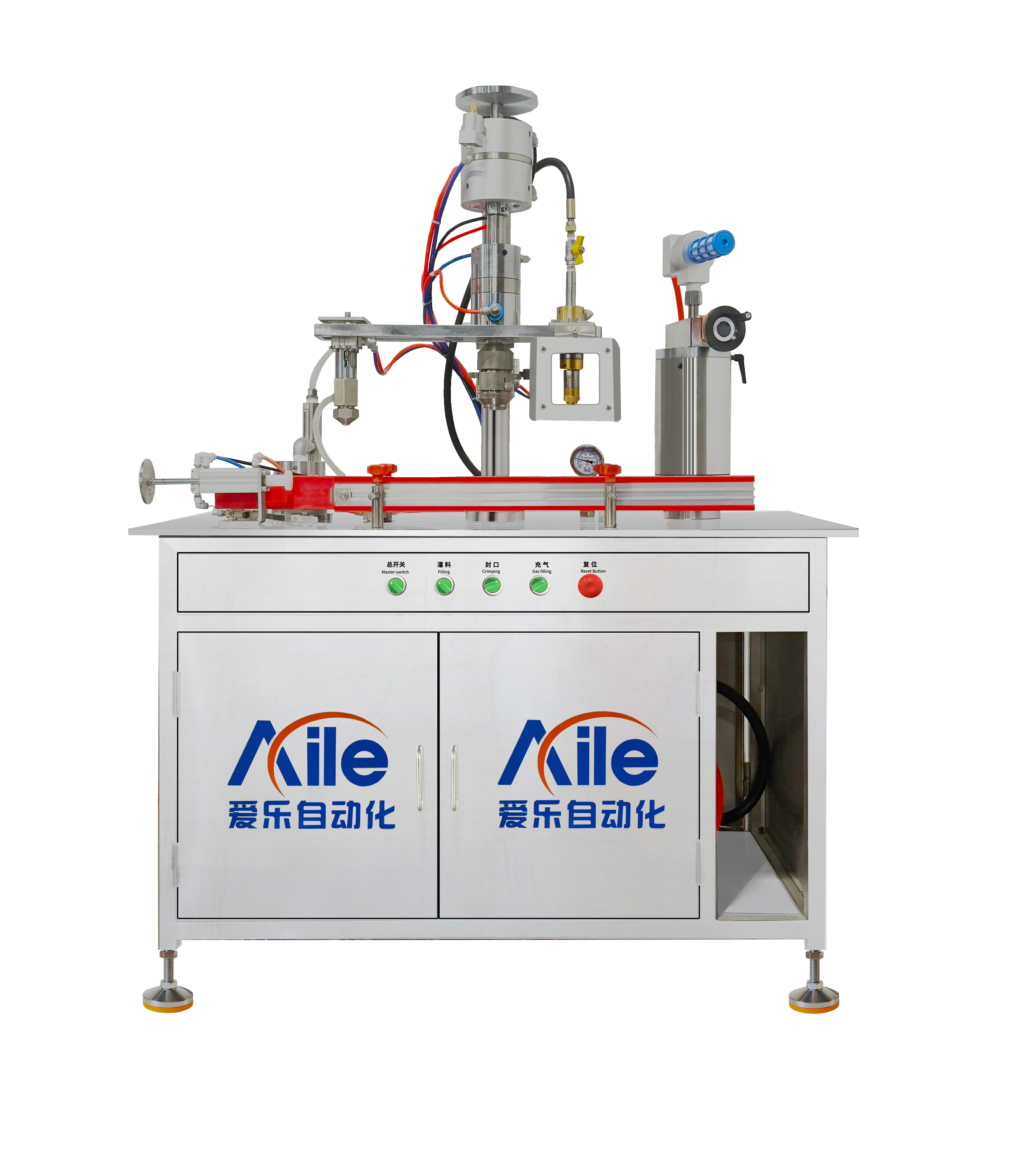

How to Maximize Your Aerosol Production ROI with a 4-in-1 Integrated Filling System

In today’s competitive aerosol manufacturing landscape, small-scale producers and laboratory startups face a significant barrier: the high cost of multi-stage machinery and the massive footprint required for traditional assembly lines. For businesses in emerging markets like Southeast Asia or Latin America, where labor costs are rising and precision is non-negotiable, staying with manual filling is no longer a viable option.

1. Core Advantages & Business ROI

Transitioning from a fragmented filling process to an integrated 4-in-1 system is not just a technical upgrade; it is a fundamental business optimization. The AL-SHY model is designed to maximize output while minimizing the "cost-per-can."

• Unmatched Labor Efficiency: Traditional setups require 3-4 workers to handle different stages. Our integrated design allows a single operator to manage the entire flow, reducing your labor overhead by up to 75%.
• Compact Footprint, Professional Output: Save over 60% of floor space. This machine fits perfectly into cleanroom environments or small labs without sacrificing the precision of large-scale industrial equipment.
• Zero-Waste Precision: With a repetitive filling accuracy of ≤±1.0g for both liquid and propellant, you eliminate the "overfill" costs that drain your monthly profits.
• Versatility Across Industries: Whether you are producing 15ml cosmetic sprays or 450ml industrial lubricants, the adjustable height (80-315mm) handles diverse product lines with ease.

2. Technical Specifications

The AL-SHY is the gold standard for versatility, supporting standard 1-inch valves and a wide range of propellant types including LPG, DME, and F134a.

3. Working Principle: The Power of Synchronization

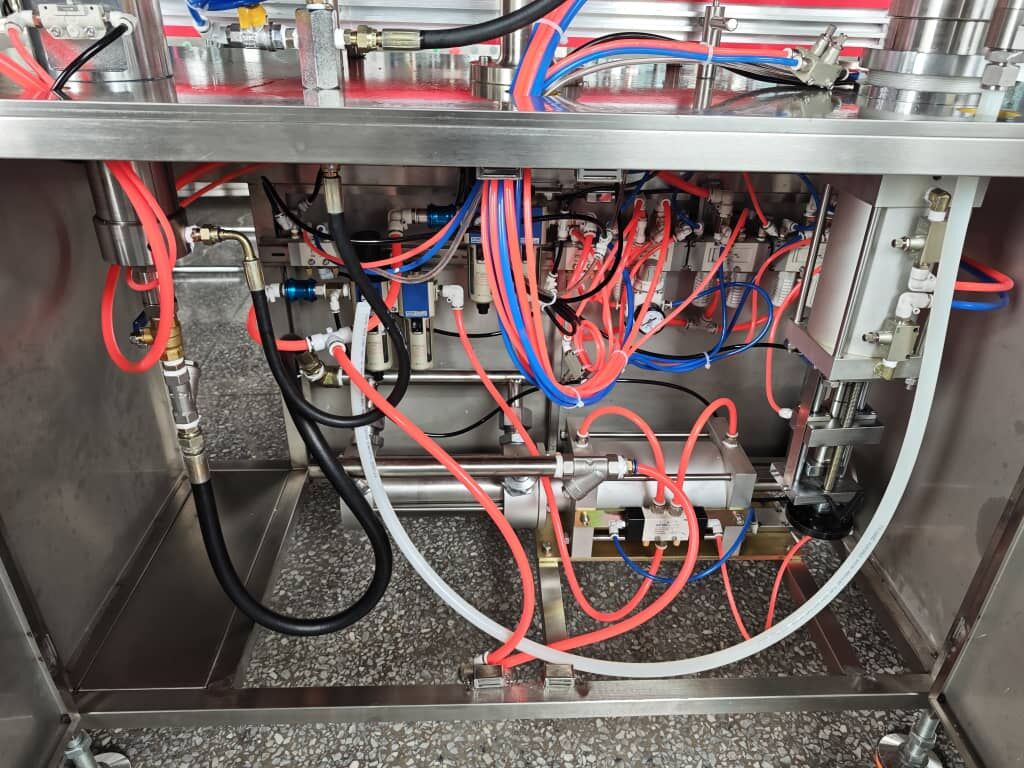

Unlike standard machines where cans move manually between stations, the 4-in-1 system utilizes a synchronized cylinder push mechanism.

The process begins with the operator placing a can at the entry point. With a single press of the foot pedal, the machine executes the following actions simultaneously:

1. Liquid Filling: High-precision pumps inject the specific formula.
2. Valve Straightening/Correcting: Ensures the manually inserted valve is perfectly aligned.
3. Sealing: The 1" valve is crimped with airtight precision.
4. Gas Charging: Propellant is injected through the valve to the exact pre-set dosage.

This "Linear Station" design means every time you take one finished can out, another is already moving through the stages, creating a continuous, rhythmic production flow.

4. Maintenance Guide for Long-term Reliability

To ensure your investment continues to operate at 100% capacity for years, we recommend a simple yet rigorous maintenance schedule:

• Air Supply Care: Always check the lubricant levels in the oil-mist separator. Ensure the compressed air is dry to prevent internal cylinder corrosion.
• Lubrication: Apply grease to moving joints and sliding rails weekly to maintain smooth mechanical movement.
• Fastener Check: Regularly inspect all screws and nuts for loosening due to operational vibration.
• Shutdown Protocol: At the end of a shift, cut off the air supply and close all liquid/propellant valves to prevent pressure buildup.

5. FAQ: Expert Insights into Aerosol Filling

Q: Can I use this machine for different propellants like CO2 or Nitrogen? A: The AL-SHY is primarily designed for LPG, DME, and F134a. For non-liquefied gases like Nitrogen, specific high-pressure modifications may be required. Please contact our technical team for a custom configuration.

Q: What happens if the sealing is not airtight? A: Most sealing issues stem from incorrect depth or diameter adjustments. The sealing head allows for micrometer-level adjustments—rotating right increases diameter/depth while rotating left decreases it.

Q: Is this machine suitable for pharmaceutical-grade products? A: Yes. Because the machine is fully pneumatic (no electricity required at the point of filling), it is inherently explosion-proof and suitable for volatile medical or industrial formulas.
